Post Description | Thông tin chi tiết tiêu chuẩn DIN 6915Tiêu chuẩn tương đương: ISO 4775; PN 82171; UNI 5713; EU 780; Ảnh chi tiết

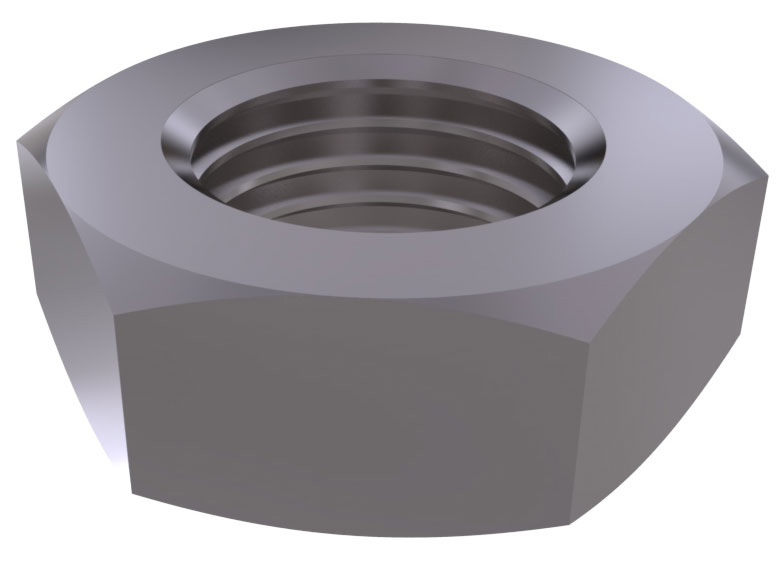

Ảnh kỹ thuật

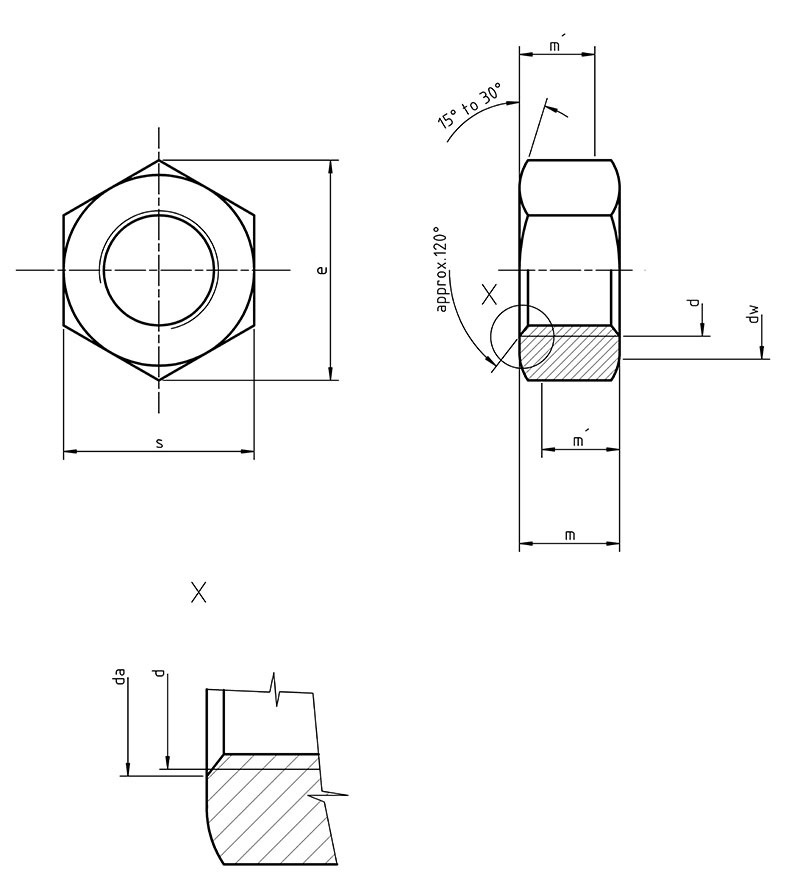

Legend:s - size of the hexagon e - the diameter of the circumscribed circle (not less than) m - height of the nut d - the nominal diameter of the thread dw - contact surface diameter
Makings:Steel: 10 Stainless: - Plastic: - Non Ferrous: - Thread: 6H
Notes: - Bảng tiêu chuẩn DIN 6915:đơn vị tính mm thread size d | M12 | M16 | M20 | M22 | M24 | M27 | M30 | M36 | P | 1,75 | 2 | 2,5 | 2,5 | 3 | 3 | 3,5 | 4 | dw | Min. | 20 | 25 | 30 | 34 | 39 | 43,5 | 47,5 | 57 | e | Min. | 23,91 | 29,56 | 35,03 | 39,55 | 45,2 | 50,85 | 55,37 | 66,44 | m | Nominal size = max. | 10 | 13 | 16 | 18 | 19 | 22 | 24 | 29 | Min. | 9,64 | 12,3 | 14,9 | 16,9 | 17,7 | 20,7 | 22,7 | 27,7 | m´ | Min. | 7,71 | 9,84 | 11,92 | 13,52 | 14,16 | 16,56 | 18,16 | 22,16 | s | Nominal size = max. | 22 | 27 | 32 | 36 | 41 | 46 | 50 | 60 | Min. | 21,16 | 26,16 | 31 | 35 | 40 | 45 | 49 | 58,8 | Weight kg/1000pcs | 23,3 | 44,8 | 73,9 | 104 | 155 | 224 | 300 | 515 |
|
