Post TitleTiêu chuẩn DIN 258
Post Description

Thông tin chi tiết tiêu chuẩn DIN 258

Tiêu chuẩn tương đương: ISO 8737; CSN 022154; EU 28738;

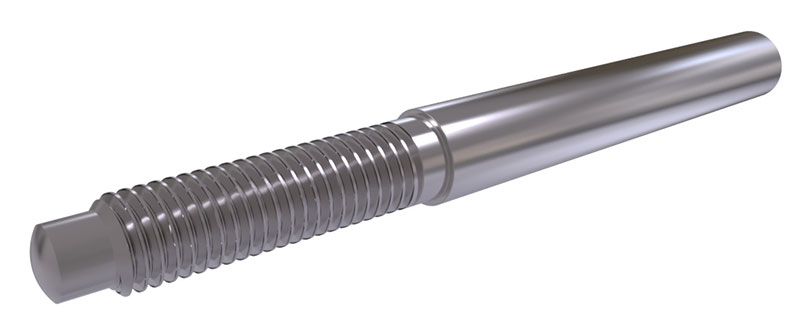

Ảnh chi tiết

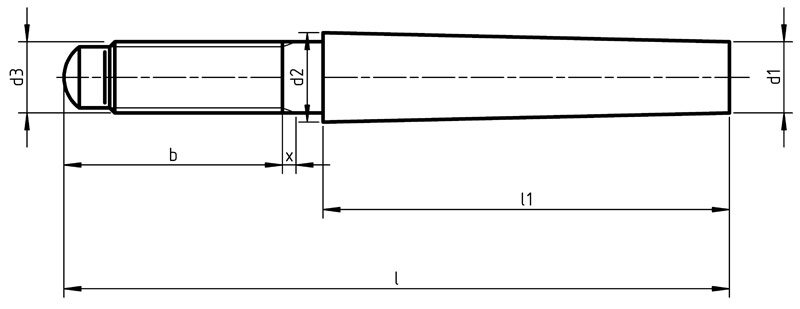

Ảnh kỹ thuật

Legend:

l - pin length
d1 - pin diameter
b - length of the thread
d3 - the nominal diameter of the thread
d2 - pin diameter
l1 - lenght

Makings:

Steel: steel
Stainless: -
Plastic: -
Non Ferrous: -
Thread: 6g

Notes:
-

Bảng chi tiết tiêu chuẩn DIN 258:

Đơn vị tính mm

56810121620
d25,56,68,810,913,117,421,7
d3M
5
M
6
M
8
M
10
M
12
M
16
M
16
b14182224273535
L225304045557285
