Post TitleTiêu chuẩn DIN 479
Post Description

Thông tin chi tiết tiêu chuẩn DIN 479

Tiêu chuẩn tương đương: CSN 021121; PN 82307;

Ảnh chi tiết

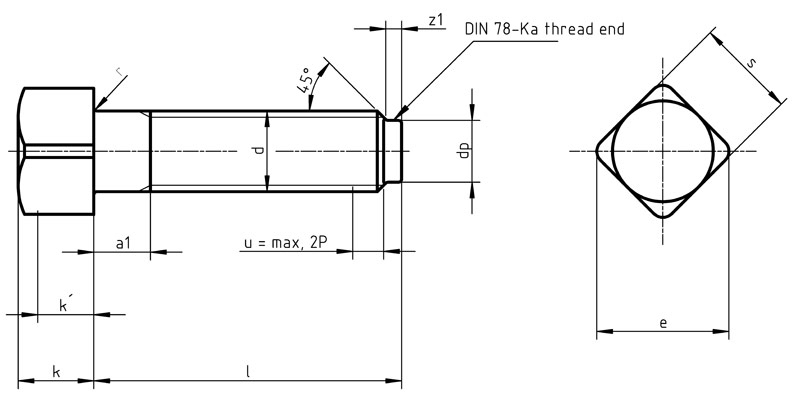

Ảnh kỹ thuật

Legend:

l - length of bolt
d - the nominal diameter of the thread
k - head height
e - the diameter of the circumscribed circle (not less than)
s - head width
a1 - length undercut
dp - diameter of the ejector
r - Head radius
k´ - minimum size of the head on the key
z1 - length of the ejector

Makings:

Steel: 8.8, 10.9
Stainless: -
Plastic: -
Non Ferrous: -
Thread: 6g

Bảng tiêu chuẩn DIN 479:

Đơn vị tính mm

Thread dM5M6M8M10M12M16M20M24
P0,811,251,51,7522,53
a1max.2,4344,55,367,59
dpnominal=max.3,545,578,5121518
min.3,323,825,326,788,2811,7314,7317,78
enominal=max.6,58101317222832
min.5,927,429,4212,316,321,1627,1631
knominal5681012162022
max.4,855,857,829,8211,7915,7919,7421,74
min.5,156,158,1810,1812,2116,2120,2622,26
k´min.3,44,15,56,98,311,113,815,2
rmin.0,20,250,40,40,60,60,80,8
snominal=max.5681013172224
min.4,825,827,789,7812,7316,7321,6723,67
z1nominal=max.1,251,522,53456
min.1,51,752,252,753,254,32,36,3
lweight kg/1000pcs
nominalmin.max.
87,718,292,593
109,7110,292,833,357,15
1615,6516,353,574,41915,5
2019,5820,424,055,110,217,430,8
2524,5825,424,665,9711,719,834,4
3029,5830,425,266,8413,322,338
3534,535,55,877,7114,924,841,6
4039,540,56,58,616,427,345,287,6
4544,545,59,441829,748,894,3
5049,550,519,532,252,4101176
5554,455,621,134,756107186259
6059,460,637,259,6114197273
7069,470,666,8127217303
8079,480,674140238333
9089,390,781,2153258362
10099,3100,7167279392
110109,3110,7180299421
120119,3120,7193320451
140139,2140,8361510
