Post TitleTiêu chuẩn DIN 965
Post Description

Thông tin chi tiết tiêu chuẩn DIN 965

Tiêu chuẩn tương đương: ISO 7046; CSN 021152; PN 82208; UNI 7688;

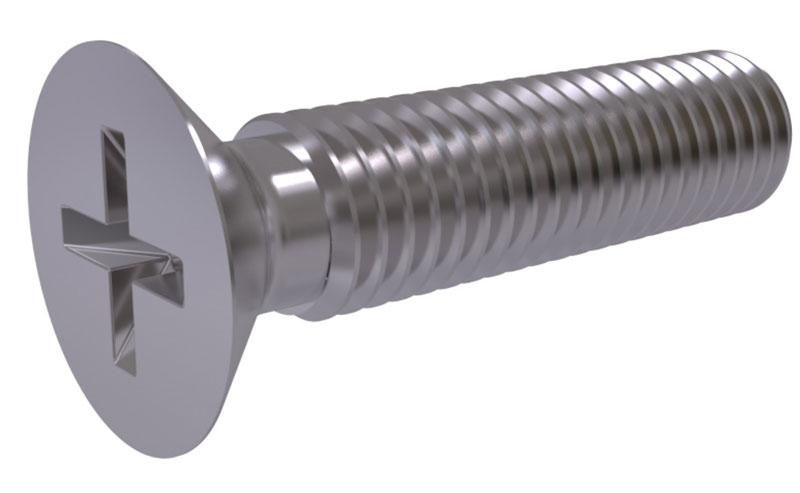

Ảnh chi tiết

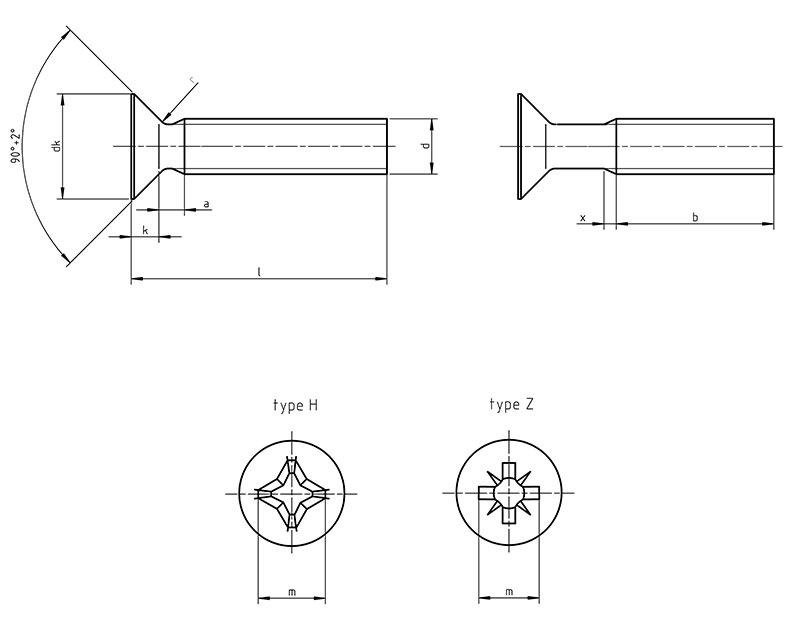

Ảnh kỹ thuật


Legend:

b - length of the thread (at least)
l - length of bolt
d - the nominal diameter of the thread
k - head height
r - radius
dk - head diameter
m - groove width
a - length undercut
x - thread run

Makings:

Steel: 4.8
Stainless: A2,A4
Plastic: -
Non Ferrous: -
Thread: 6g

Bảng tiêu chuẩn DIN 965:

Đơn vị tính mm

Thread dM1,6M2M2,5M3(M3,5)M4M5M6M8M10
P0,350,40,450,50,80,70,811,251,5
amax.0,70,80,911,21,41,622,53
bmin.15161819202225283440
dknominal = max.33,84,75,66,57,59,21114,518
min.2,753,54,45,36,147,148,8410,5714,0717,57
kmax.0,961,21,51,651,932,22,5345
rmax.0,40,50,70,80,9511,31,622,5
xmax.0,911,11,251,51,7522,53,23,8
Cross recessno.0111222344
type Hmapprox.1,72,352,72,93,94,44,66,68,79,6
penetration depthmin.0,660,951,251,51,41,92,12,83,94,8
max.0,911,251,551,81,92,42,63,34,45,3
type Zmapprox.1,82,22,52,83,744,46,18,59,4
penetration depthmin.0,890,921,221,481,341,62,052,463,864,77
max.1,141,171,471,731,82,062,512,924,325,23
lWeight (7,85 kg/dm3) kg / 1000pcs
nominalmin.max.
32,83,20,0580,1010,175
43,754,250,0690,1190,2060,2910,434
54,755,250,0810,1370,2360,3350,4940,676
65,756,250,0930,1520,2660,3790,5540,7541,21
87,78,30,1160,1930,3260,4670,6730,91,452,19
109,710,30,1390,2310,3860,5550,7921,061,72,545,03
1211,6512,350,1620,2680,4460,6430,9111,221,952,895,679,59
(14)13,6514,350,1850,3060,5070,7311,031,372,193,256,310,6
1615,6516,350,2080,3430,5670,821,151,532,443,616,9411,6
(18)17,6518,350,3810,6270,9081,271,682,693,957,5712,6
2019,620,40,4170,6870,9961,391,842,944,318,2113,6
(22)21,622,40,7471,081,511,993,184,668,8414,6
2524,625,40,8381,221,692,223,555,199,7916,1
(28)27,628,41,351,872,463,935,7210,717,6
3029,630,41,441,992,614,166,0811,718,6
3534,535,52,292,994,766,961321,1
4039,540,53,365,397,8414,623,6
4544,545,56,028,7316,226,1
5049,550,56,659,6117,828,6
55545619,431,1
60596133,7
